MPH II

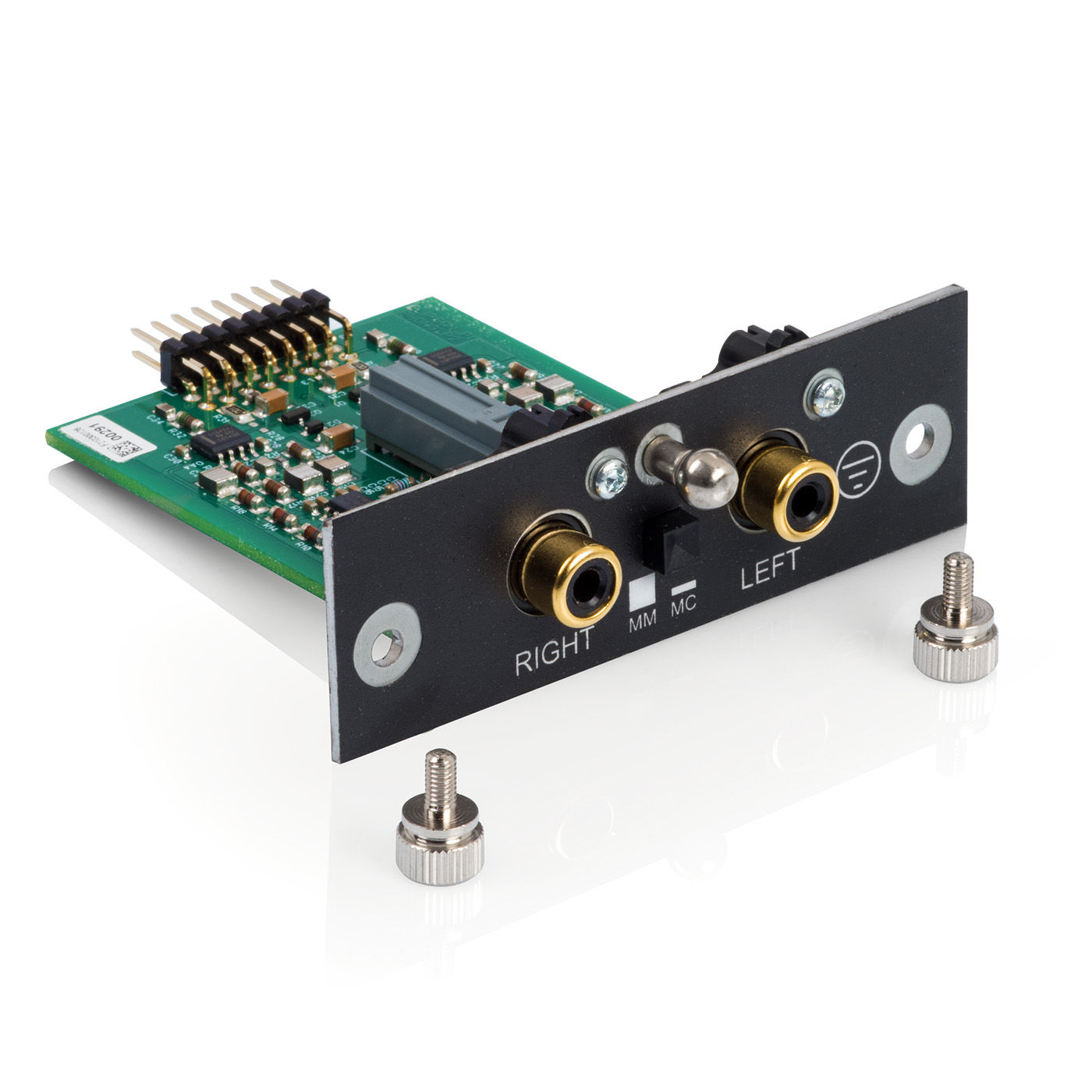

The MPH II module is a Phono add-on card from the Reference range.
DESCRIPTION
Once easily plugged in, your preamplifier or integrated circuit automatically recognizes this module and takes into account this Phono input.
Compatible with moving magnet (MM) or moving coil (MC) cartridges, benefiting from high performances such as high signal-to-noise ratio, high crosstalk, and wide bandwidth, the signal of your grooves will benefit from the transparency and musicality as for the other analog or digital inputs of our electronics.
DOCUMENT
PRODUCT DATA SHEETCHARACTERISTICS
TECHNICAL DATA
Phono RIAA stage (MPH II) MM & MC : Moving magnet and moving coil
Inputs : 1 x RCA Stereo + chassis
Input Amplification (1kHz) MM / MC : 41 dB / 61 dB
Input impedance MM / MC : 47 kΩ / 100 Ω
MM / MC Signal-to-Noise Ratio (@ 0 dBu out) : 76 dB (A) / 83 dB (A)
MM / MC input sensitivity : 7.5 mV / 750 mV at 0 dBu out
Bandwidth : 25 Hz - 80 kHz (@- 3 dB)
Crosstalk : < -100 dB
Output impedance : 600 Ω
Max output voltage MM / MC : 20 dBu (17,8 dBV)@ THD=1 %
DIMENSIONS / WEIGHT
Dimensions W x H x D : 78 x 25 x 92 mm
Weight : 50 g
